پاندول معکوس چیست؟
What is an Inverted Pendulum?
پاندول معکوس (Inverted Pendulum) یکی از دقیقترین و قدیمیترین ابزارهای پایش
جابهجایی افقی در سدهای بتنی و سنگریزهای است. اصل کار آن ساده اما بسیار مؤثر است: یک سیم فلزی
مستقیم و کاملاً کشیده، از یک نقطهٔ ثابت و عمیق در پی سنگی سد (که جابهجا نمیشود) به سمت بالا،
تا نقاط مختلف بدنه سد کشیده میشود. چون انتهای پایینی سیم ثابت است و انتهای بالایی همراه با
بدنهٔ سد حرکت میکند، هر جابهجایی افقی در سازه، بهصورت انحراف سیم نسبت به راستای قائم قابل مشاهده است.
An Inverted Pendulum is one of the most accurate and long-established tools for
monitoring horizontal displacement in concrete and rockfill dams. Its operating principle is simple
yet highly effective: a straight, fully tensioned metal wire runs from a fixed, deep point anchored
in the dam's rock foundation (which does not move) upward through different levels of the dam body.
Since the lower end of the wire is fixed and the upper end moves along with the dam body, any horizontal
displacement in the structure appears as a deviation of the wire from the vertical.
با اندازهگیری این انحراف در دو محور افقی X و Y در طبقات مختلف سد، مهندسان میتوانند
نیمرخ کامل جابهجایی افقی بدنه سد را در طول زمان ترسیم کنند و رفتار سازه را در برابر فشار آب، دما
و بار زلزله بررسی نمایند.
By measuring this deviation along the two horizontal axes, X and Y, at different
levels of the dam, engineers can chart the complete horizontal displacement profile of the dam body
over time and study the structure's behavior under water pressure, temperature, and seismic loads.
چرا این پایش حیاتی است؟ جابهجایی افقی بیش از حد مجاز در بدنهٔ سد، میتواند نشانهٔ
اولیهٔ بروز مشکلاتی مانند ناپایداری پی، ترکخوردگی سازهای یا رفتار غیرعادی زیر بار باشد. در صورتیکه
این جابهجایی بهموقع شناسایی و پیگیری نشود، ممکن است به تشدید آسیب سازهای و در بدترین حالت به
خرابی جزئی یا کامل سد منجر شود؛ فاجعهای که پیامدهای جانی، مالی و زیستمحیطی
گستردهای برای مناطق پاییندست به همراه دارد. به همین دلیل، پاندول معکوس یکی از حساسترین
ابزارهای ابزاردقیق (Instrumentation) در هر سد بزرگ محسوب میشود.
Why is this monitoring critical? Excessive horizontal displacement in the dam body
can be an early indicator of problems such as foundation instability, structural cracking, or abnormal
behavior under load. If such displacement is not identified and tracked in time, it can lead to
worsening structural damage and, in the worst case, to partial or complete dam failure —
a disaster with severe consequences for life, property, and the environment in downstream areas.
For this reason, the inverted pendulum is one of the most critical instrumentation devices in any large dam.
روش کنونی در برابر دستگاه دیجیتال
Current Method vs. Digital Device
مدلهای کنونی نصبشده در سدهای کشور بهصورت آنالوگ هستند؛ به این معنا که یک اپراتور
با استفاده از ابزار چشمی و همچنین کولیس، اقدام به اندازهگیری فاصلهٔ سیم پاندول در محورهای X و Y
مینماید. کاربر شاخص ابزار را حرکت میدهد تا بتواند موقعیت سیم را دنبال و اندازهگیری کند. دقت این
روش کاملاً محدود به کیفیت ابزار اندازهگیری و مهارت و دقت اپراتور است.
The current models installed in the country's dams are analog; meaning an operator uses
a visual instrument along with a caliper to measure the pendulum wire's distance along the X and Y axes.
The operator moves the instrument's index to track and measure the wire's position. The accuracy of this
method is entirely limited by the quality of the measuring tool and the operator's skill and precision.
دستگاه تولیدشده توسط این شرکت، بهصورت تماماتوماتیک میتواند موقعیت سیم پاندول را
با دقت فوقالعاده بالا و میکرومتری اندازهگیری نماید. دقت آن فراتر از روش کنونی مبتنی
بر کولیس و ابزار مکانیکی و چشمی موجود است. این دستگاه نیازی به اپراتور ندارد و طبق یک برنامهٔ
زمانبندی مشخص، این کار را بهطور مرتب انجام داده و مقادیر را در حافظهٔ داخلی خود ذخیره میکند.
The device produced by this company can measure the pendulum wire's position fully automatically
with extremely high, micrometric precision. Its accuracy exceeds that of the current
method based on calipers and existing mechanical/visual tools. The device requires no operator and,
according to a defined schedule, performs this task regularly and stores the values in its internal memory.
- حذف کامل خطای انسانی ناشی از قرائت چشمی و دستی
- اندازهگیری خودکار و مستمر بدون نیاز به حضور اپراتور در محل
- دقت میکرومتری، فراتر از توان کولیسهای مکانیکی و دیجیتال معمول
- ذخیرهٔ خودکار داده در حافظهٔ داخلی طبق برنامهٔ زمانبندی
- Complete elimination of human error caused by manual and visual reading
- Automatic and continuous measurement without requiring an operator on-site
- Micrometric accuracy, exceeding the capability of common mechanical and digital calipers
- Automatic data storage in internal memory according to a scheduled program
مکانیزم عملکرد دستگاه
Device Operating Mechanism
این دستگاه با استفاده از روش الکترومکانیکال اقدام به دادهبرداری مینماید. یک
بازوی رباتیک بهوسیلهٔ موتورهای فوقدقیق حرکت نموده و خود را در برابر سیم پاندول
تنظیم میکند. سپس فاصلهٔ سیم در دو محور X و Y با استفاده از لیزر اندازهگیری میشود.
This device performs data acquisition using an electromechanical method. A
robotic arm, driven by ultra-precise motors, moves and positions itself relative to
the pendulum wire. The distance of the wire along the X and Y axes is then measured using a
laser.
ترکیب حرکت دقیق بازوی رباتیک با اندازهگیری لیزری، روشی فوقالعاده کارآمد و دقیق
است که امکان قرائت تماماتوماتیک، بدون تماس فیزیکی مستقیم و بدون خطای ناشی از لغزش یا سایش
اجزای مکانیکی را فراهم میکند.
The combination of the robotic arm's precise motion with laser-based measurement is an
extremely efficient and accurate method, enabling fully automatic readings without
direct physical contact and without errors caused by slippage or wear of mechanical components.
📡 معرفی دستگاه پایش سلامت سد (قرائت پاندول معکوس دیجیتال)
📡 Introducing the Dam Health Monitoring Device (Digital Inverted Pendulum Reader)
دستگاه پایش سلامت سد، ابزاری برای قرائت خودکار پاندول معکوس است که توسط شرکت دانشبنیان هرمس
طراحی و ساخته شده است. این دستگاه با دقت فوقالعاده بالا و میکرومتری در اندازهگیری
موقعیت سیم پاندول، امکان پایش پیوسته و قابلاعتماد جابهجایی افقی بدنه سد را فراهم میکند.
The Dam Health Monitoring Device is an instrument for automatically reading the inverted pendulum,
designed and manufactured by Danesh Fanavar Hermes Company. With extremely high, micrometric
precision in measuring the pendulum wire's position, it enables continuous and reliable
monitoring of the dam body's horizontal displacement.
بر خلاف روش سنتی که نیازمند حضور اپراتور و قرائت چشمی با کولیس در محل است، این دستگاه بهصورت
تماماتوماتیک عمل میکند و هیچ نیازی به دخالت انسانی برای انجام قرائتهای
روزمره ندارد. این ویژگی، هم دقت را بهطور چشمگیری افزایش میدهد و هم امکان پایش مستمر و
بدون وقفه را فراهم میکند.
Unlike the traditional method, which requires an operator's presence and visual reading with a
caliper on-site, this device operates fully automatically and requires no human
intervention for routine readings. This feature significantly increases accuracy while enabling
continuous, uninterrupted monitoring.
دستگاه پایش سلامت سد بهصورت خودکار و بر اساس برنامهٔ زمانبندی، موقعیت سیم
پاندول را در محورهای X و Y خوانده و بهصورت بلندمدت در حافظهٔ داخلی خود ذخیره میکند، بهگونهای
که حتی در صورت بروز اختلال موقت در ارتباط با سامانه مرکزی، هیچ دادهای از دست نمیرود.
The Dam Health Monitoring Device automatically and according to a schedule reads
the pendulum wire's position along the X and Y axes and stores it long-term in its internal memory,
so that even in the event of a temporary disruption in communication with the central system,
no data is lost.

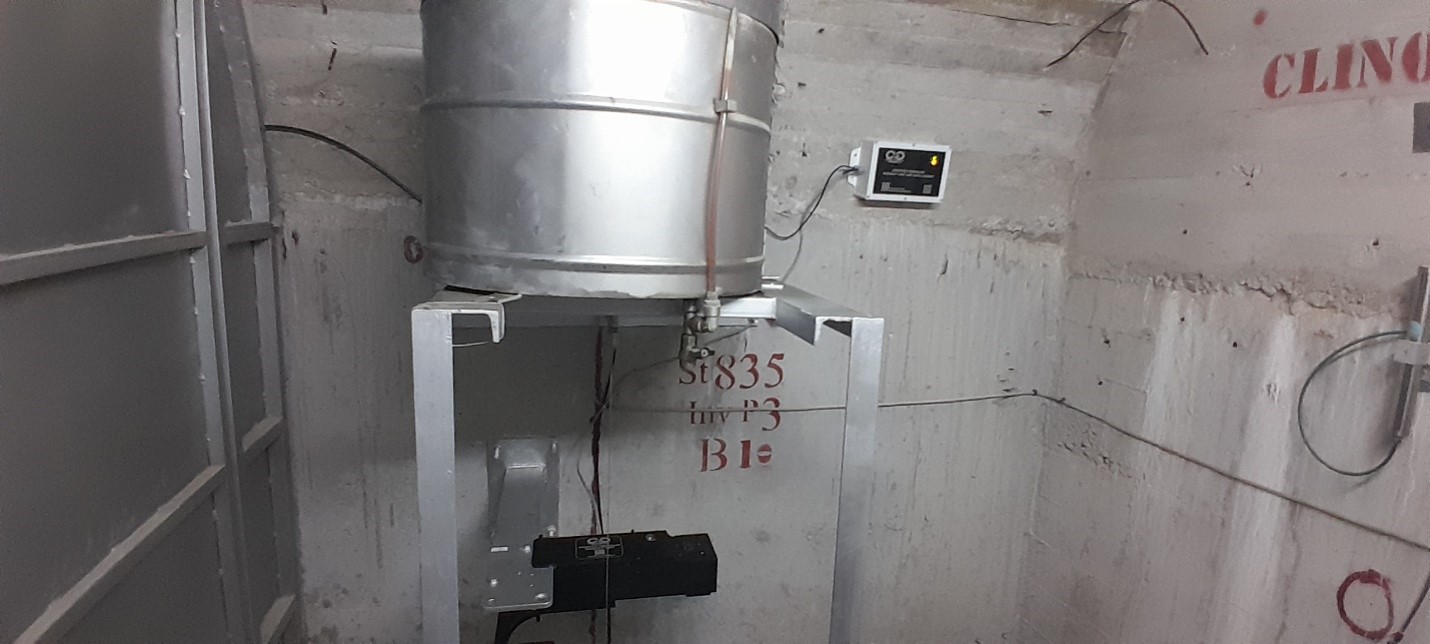

این دستگاه با موفقیت در سد سلمان فارسی، بزرگترین سد جنوب کشور، نصب گردیده و
عملکرد آن مورد تأیید قرار گرفته است.
This device has been successfully installed at Salman Farsi Dam, the largest dam
in southern Iran, and its performance has been validated.
این محصول، ماحصل دانش فنی و توان مهندسی داخلی است و بهطور کامل در ایران و توسط شرکت دانشبنیان هرمس
طراحی، ساخته و بومیسازی شده است.
This product is the result of technical knowledge and domestic engineering capability, fully designed,
manufactured, and localized in Iran by Danesh Fanavar Hermes Company.
حاصل این تلاش، جایگزینی مطمئن و بومی برای تجهیزات مشابه خارجی است که ضمن کاهش وابستگی
به واردات، امکان پشتیبانی سریعتر، هزینهٔ نگهداری پایینتر و انطباق بهتر با نیازهای خاص سدهای ایران را
نیز فراهم میآورد.
The result of this effort is a reliable domestic alternative to similar foreign equipment
which, while reducing dependence on imports, also enables faster support, lower maintenance costs,
and better adaptation to the specific needs of Iran's dams.
✨ ویژگیهای خاص یک دستگاه قرائت پاندول معکوس مدرن و پیشرفته
✨ Key Features of a Modern Advanced Inverted Pendulum Reader
اندازهگیری با بازوی رباتیک و لیزر
حرکت دقیق بازوی رباتیک با موتورهای فوقدقیق و اندازهگیری بدونتماس فاصلهٔ سیم با لیزر
اندازهگیری تماماتوماتیک
حذف کامل نیاز به اپراتور و قرائت چشمی؛ اندازهگیری خودکار موقعیت سیم پاندول در دو محور X و Y
دقت میکرومتری
دقتی فراتر از روشهای سنتی مبتنی بر کولیس و ابزار مکانیکی و چشمی موجود
خوانش زمانبندیشده و خودکار
اجرای منظم قرائتها طبق برنامهٔ زمانی تعیینشده، بدون نیاز به دخالت مداوم اپراتور
ذخیرهسازی بلندمدت دادهها
حافظهٔ داخلی با ظرفیت بالا برای نگهداری دادهها در بازهٔ زمانی طولانی، حتی در قطع ارتباط با مرکز
اتصال سیمی (Wired)
پشتیبانی از پروتکلهای استاندارد صنعتی مانند RS-485 / Modbus برای انتقال داده روی کابل
اتصال بیسیم (Wireless)
ارسال داده به سامانهٔ مرکزی از طریق GSM/GPRS و رادیویی، مناسب سایتهای دورافتاده
حذف خطای انسانی
عدم وابستگی نتیجهٔ اندازهگیری به مهارت یا دقت اپراتور، بر خلاف روشهای آنالوگ کنونی
ثبت زمانی دقیق
ساعت داخلی دقیق و درج زمان دقیق برای هر قرائت، جهت تطبیق داده با رویدادهای دیگر
محافظت در برابر صاعقه و اضافهولتاژ
حفاظت الکترونیکی در برابر جریانهای القایی ناشی از کابلکشی در محیط سازه
درجهٔ حفاظت بالا (IP67/IP68)
مقاومت در برابر نفوذ آب و گردوغبار، مناسب نصب در محیط مرطوب داخل بدنه سد
مصرف انرژی پایین و کارکرد پایدار
مصرف انرژی بسیار کم و پایداری عملکرد مکانیکی و الکترونیکی در طول زمان
هشدار و آستانهٔ بحرانی (Alarm)
امکان تعریف حد مجاز برای جابهجایی افقی و اطلاعرسانی خودکار هنگام عبور از آن
طراحی ماژولار و قابل توسعه
امکان نصب در چند طبقهٔ سد و افزودن نقاط قرائت جدید بدون نیاز به تغییر ساختار اصلی
خودتشخیصی (Self-Diagnostics)
تشخیص خودکار قطعی کابل، اتصال کوتاه یا خرابی مکانیزم و گزارش آن
رابط نرمافزاری و داشبورد گرافیکی کاربر پسند
نمایش روند تغییرات جابهجایی افقی سد در محورهای X و Y در طول زمان، بهصورت گرافیکی و قابل تحلیل
یکپارچگی داده و پشتیبانگیری خودکار
جلوگیری از گمشدن داده در صورت قطعی برق یا ارتباط، با پشتیبانگیری منظم
امنیت داده و سطوح دسترسی کاربران
رمزنگاری دادههای ارسالی و تعریف سطوح مختلف دسترسی برای کاربران، جهت جلوگیری از تغییر یا مشاهدهٔ غیرمجاز اطلاعات حساس سازه
خوانش رویدادمحور (Event-Triggered Reading)
علاوه بر خوانش زمانبندیشده، امکان ثبت خودکار قرائتهای اضافی هنگام وقوع رویدادهای خاص مانند زلزله یا تغییر ناگهانی جابهجایی
پایش دقیق پی و بدنهٔ سد
ارائهٔ تصویری دقیق و پیوسته از رفتار سازه در برابر فشار آب، دما و بارهای دینامیکی
هشدار زودهنگام بروز مخاطرات سازهای
امکان شناسایی بهموقع روند غیرعادی جابهجایی، پیش از تبدیلشدن به آسیب جدی سازهای
Robotic-Arm and Laser Measurement
Precise movement of a robotic arm driven by ultra-precise motors, with non-contact laser measurement of the wire's position
Fully Automatic Measurement
Completely eliminates the need for an operator and visual reading; automatic measurement of the pendulum wire's position on both the X and Y axes
Micrometric Accuracy
Accuracy that surpasses traditional methods based on calipers and existing mechanical, visual tools
Scheduled, Automatic Reading
Regular execution of readings according to a defined time schedule, without the need for constant operator intervention
Long-Term Data Storage
High-capacity internal memory for retaining data over long periods, even during a disconnection from the center
Wired Connection
Support for standard industrial protocols such as RS-485 / Modbus for data transfer over cable
Wireless Connection
Data transmission to the central system via GSM/GPRS or radio, suitable for remote sites
Eliminates Human Error
Measurement results are independent of operator skill or accuracy, unlike current analog methods
Precise Timestamping
An accurate internal clock and precise timestamp for every reading, to correlate data with other events
Lightning and Surge Protection
Electronic protection against induced currents caused by cabling within the structure
High Protection Rating (IP67/IP68)
Resistance to water and dust ingress, suitable for installation in the damp environment inside the dam body
Low Power Consumption and Stable Operation
Very low energy consumption and stable mechanical and electronic performance over time
Alarms and Critical Thresholds
Ability to define an allowable limit for horizontal displacement and receive automatic notification when it is exceeded
Modular, Expandable Design
Can be installed on multiple levels of the dam, with new reading points added without changing the main structure
Self-Diagnostics
Automatic detection and reporting of cable breaks, short circuits, or mechanism failures
User-Friendly Software Interface and Graphical Dashboard
Displays the trend of the dam's horizontal displacement on the X and Y axes over time, in a graphical, analyzable format
Data Integrity and Automatic Backup
Prevents data loss in the event of a power or communication outage, through regular backups
Data Security and User Access Levels
Encryption of transmitted data and definition of different user access levels, to prevent unauthorized modification or viewing of sensitive structural information
Event-Triggered Reading
In addition to scheduled readings, automatic logging of extra readings when specific events occur, such as an earthquake or a sudden change in displacement
Precise Monitoring of the Dam's Foundation and Body
Provides an accurate, continuous picture of the structure's behavior under water pressure, temperature, and dynamic loads
Early Warning of Structural Hazards
Enables timely identification of abnormal displacement trends before they turn into serious structural damage
تصویر محل نصب دستگاه قرائت پاندول معکوس دیجیتال در سد سلمان فارسی
Installation of the digital inverted pendulum reading device at Salman Farsi Dam
← بازگشت به خانه
← Back to Home
